技術參數(Technical Specification)

型號

Model

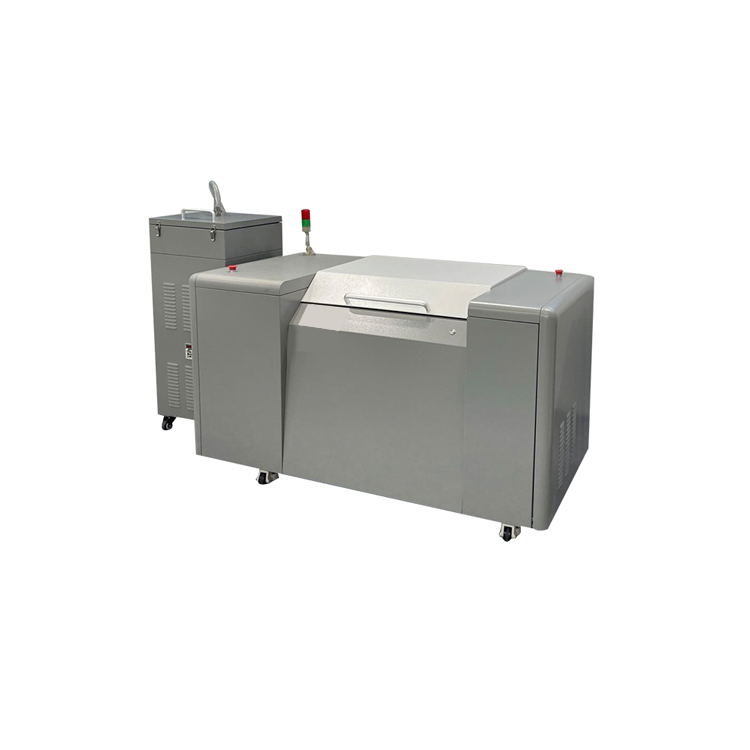

HDI800-S/H

激光路數

NO. of Lasers

16/32

制版速度

Throughput

(610x510mm)

(張/小時,plates/h)

1.1-2.5m²/hour

常用／最大/最小幅面

Com/Max./Min. Format

最大幅面(Max.): 762x635mm

最小幅面(Min.): 100mmx 130mm

激光光源

Laser Source

830nm

制版精度

Resolution

2400/4000dpi

上、下版方式

Loading System

手動進版

Manual loading/unloading

適用版材

Plates Requirement

厚度(thickness): 0.14-4.7mm 數碼柔印版、聚脂基凸版、燒蝕型菲林(Digital flexographic plate, photopolymer plate, ablative film)

CTP接口

Interface

1-bit Tiff接口以及流程直接驅動,支持CIP3/CIP4

1-bit Tiff interface and direct workflow driver, support CIP3/CIP4

電力要求

Power

單相交流(single phase): AC22V±5%, 50-60Hz 5.5KVA 含真空泵及除塵泵  (including vacuum pump and dust removal pump)

工作環(huán)境要求

Work Environment

溫度(Temperature): 18-25?C 濕度(Humility): 20%-70% 無結露(No condensation)

尺寸、重量

Size &Weight

尺寸(size): 1375*1250*1115mm (W*D*H)

重量(Weight): 900KGS
